OEM Fiber Optic PLC Splitter 1x64 1x128 2mm Cassette Type Fc Sc Lc St Connectors

Name: OEM Fiber Optic PLC Splitter 1x64 1x128 2mm Cassette Type Fc Sc Lc St Connectors
Brand: YINGDA
Price: 1.1 USD

Wholesale OEM Fiber Optic PLC Splitter 1x64 1x128 2mm Cassette Type Fc Sc Lc St Connectors from china suppliers

Brand Name : YINGDA

Model Number : 1X64

Certification : ISO SGS ROHS

Place of Origin : china

MOQ : 100 pcs

Price : 1.1USD-4.58USD

Supply Ability : 10,000 pcs per month

Delivery Time : 5-8days after payment

Packaging Details : 1pc/ box,20pcs/carton box

split ratio : 1X64mini module

connector : SC/UPC simiplex

fiber type : single mode G657A1

insertion loss : 20.5dB

Uniformity (Max.) : 2dB

wavelength : 1260 - 1650 nm

PDL(Max.) : 0.35dB

Standard : Telcordia GR-1221 and GR-1209

tube dimension : 100*40*6mm

Contact Now

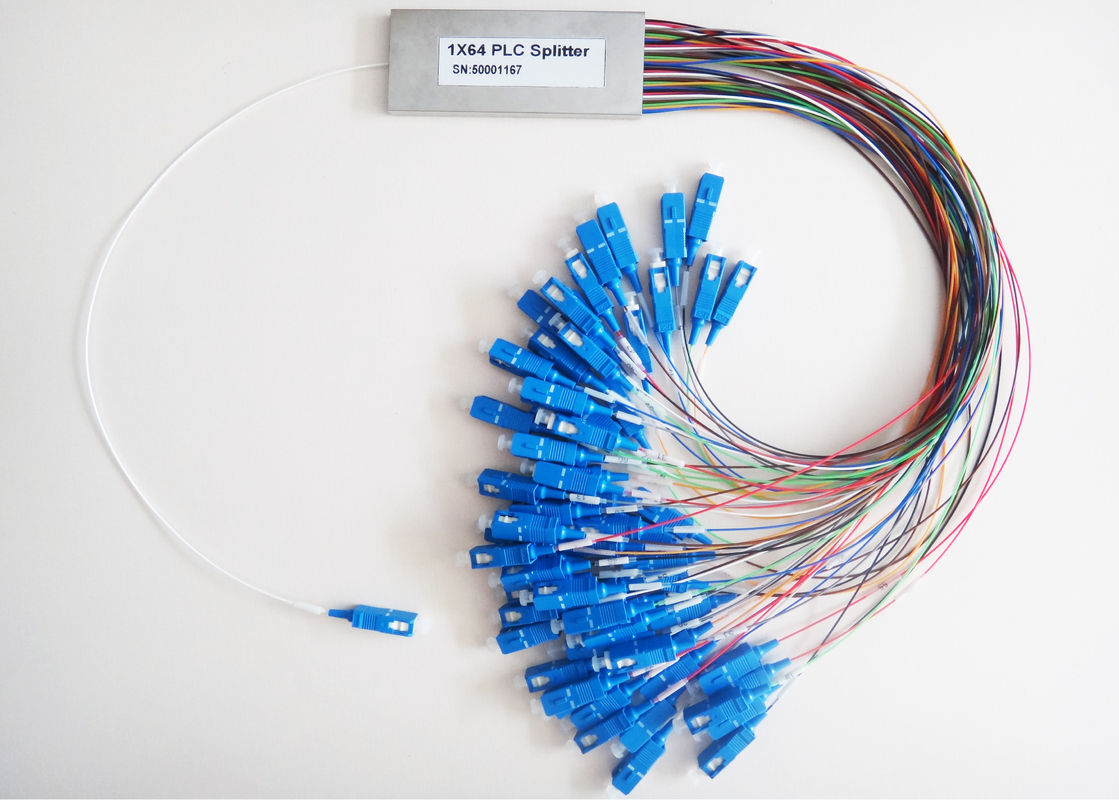

1*64 Fiber Optic Plc Splitter Single Mode 2mm Cassette Type Fc Sc Lc St Connectors

Fiber optic splitter is used to split a fibre optic beam into several beams at a certain splitting ratio.

Fibre optic splitter is one of the key components in ftth. SHENZHEN YINGDA PHOTONIC supply

Planar Light wave Circuits which are key components used in FTTx networks. It including 1XN to

64 and 2XN to 64 types, they are with a wide range of working wavelength from 1260nm to1620nm.

The PLC splitter can be with optional various kinds of connectors and cable length, they feature

compact size and very good optical performance.

Sell point:

1. Connectors; SC FC LC ST

2. Cable output input diameter

3. Cable length (unit: meter)

4. Fiber type: G652D G657A1 G657A2

5. Package detail

6. OEM logo label design

Specification

1xn Splitter technical

Split ratio	1x2	1x4	1x8	1x16		1x32	1x64		1x128
Operating Wavelength(nm)	1260-1620nm
Fiber Type	G657A1 or customer specified
Insertion Loss (dB)P Grade	3.8	7.1	10.2		13.5	16.5	20.5		23.8
Insertion Loss (dB) S Grade	4.0	7.3	10.5		13.7	16.9	21		24.2
Loss Uniformity(dB)	0.4	0.6	0.8		1.2	1.5	2		2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2		0.25	0.3	0.35		0.4
Return Loss (dB)	55
Directivity (dB)	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3		0.5	0.5	0.5	0.5
Temperature Stability (-40- +85℃)(dB)	0.4	0.4	0.4		0.5	0.5	0.5	0.5
Operating Temperature	-40- +85℃
Storage Temperature	-40- +85℃

Tube siz

Split ratio	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Mini-Module Dimension(mm)	6074	6074	6074	60124	80206	100406	N/A

Features

Good channel-to-channel uniformity
High Reliability and Stability
Low Insertion loss
Low PDL
Compact Design

Application

Optical Signal Distribution
FTTX Systems
PON Networks
CATV Links

Yingda can provide customized designs to meet specialized feature applications, and also offers modular assemblies that integrated other components to form a full function module.
