GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure
FTTH drop cable type fiber optic cable joint box / closure features with ruggedness, which is ested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design helps user get better experience and safer operating environment.
Features
Dis-mountable adaptor panel
Support midspan termination
Easy operation and installation
Rotatable and dis-mountable splice tray for easy splicing
Product details
Empty Box:1 uncut inlet port, 24pcs Completed Box: 2pcs 1:8 plc splitter + 24pcs
ftth drop cable outlets SC/APC adapter panel
Inside view: 24 pcs SC couplers+ cable fixtion; Splitter tray: the tray can max. fusion 12pcs
metal sheet can be small or big size load 1 to 8 optical splitter white
Back view: 2pcs mounting holes, horizontal or vertical Splice tray is removable seperately
metal sheet for mounting, hole for clamps
Lock system: high quality buckle, engineer plastic PP+GF, each 2pcs metal screw nuts to close it.
Box overview: IP68 waterproof splice enclosure, unique design, ftth wall moun / pole mount application
Specification
| Model | FDB0224G |
| Adapter | 24 pcs of SC |
| Cable ports | 1 uncut inputs |
| Applicable cable diameter | Uncut port: 10-17.5mm |
| Drop cable ports | 24ports |
| Applicable cable diameter | 2*3mm FTTH drop cable, 2*5mm figure 8 FTTH drop cable |
| Dimension | 385*245*130mm |
| Material | Modified polymer plastic |
| Sealing structure | Mechanical sealing |
| Color | Black |
| Maximum splicing capacity | 96 fibers (4 trays, 24 fibers / tray) |
| Applicable spliter | 1pc of 1*16 plc splitter or 2 pcs 1*8 plc splitters |
| Sealing | Ip68 |
| Impact test | IK10 |
| Pull test | 100N |
| Midspan entry | Yes |
| Storage (tube/micro cable) | Yes |
| Net weight | 4kg |
| Gross weight | 5kg |
| Packing | 540*410*375mm (4pcs per carton) |

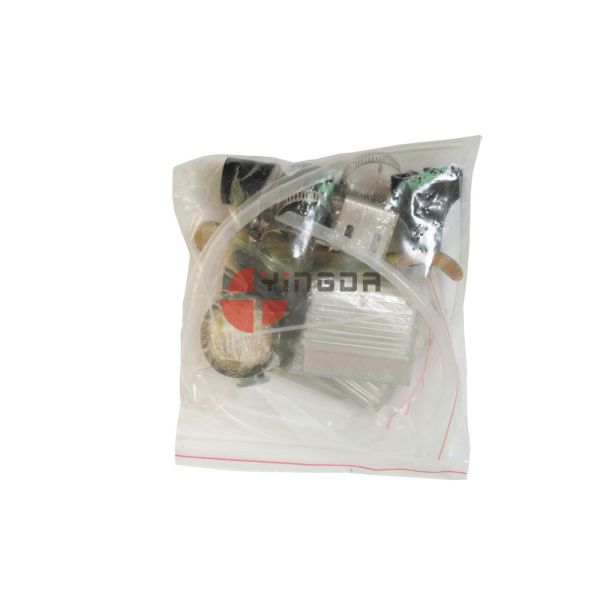

Standard parts
| S/N | Description | Quantity | Note |
| 17 | Wall mounting kit | 1 | For wall mounting |
| 18 | Expansion anchor bolt | 2 | Parts of the wall mounting kit |
| 19 | Hexagon bolt | 2 | Parts of the wall mounting kit |
| 20 | Nylon tie(3*120mm) | 12 | Fixing cable |
| 21 | Fusion sleeve(Φ1.0*60mm) | According to the fiber cores. | Cable splicing |
| 22 | 0.2m coil tube | 1 | Protect the fiber |
| 23 | Insulation tape | 1 | Accessorial fixation |
| 24 | 0.5m EVA tube | 1 | Protect fiber |
| 25 | Drier | 1 | |
| 26 | M6 internal hexagonal wrench | 1 | Tool to open the box |
| 27 | 14# grommet | 2 | For cable dia. From 12-17.5mm |
| 28 | 41# grommet | 2 | For cable dia. From 8-12mm |
| 29 | Plastic plug | 4 | Seal the cable port |
| 30 | Iron spanner | 1 | Tool |
