RJ11 Module fiber Optic Termination ftth Box SC Adapter Nap Cassette Faceplate Wall Mounted Outlet
This wall outlet is an indoor terminal applied in the FTTX network to connect the drop cable and optical devices through fiber port. It can also used RJ11 modules with telephone, it is widely used in CATV network, fiber and copper network.
Features
- Made of high quality brand new ABS+PC, anti-collision, flame retardant, resistance to impact.
- All the materials complied with ROHS standard.
- Fiber cable inlets in 3 directions, supports the cable inlets for different scenarios.
- white color, compact size, large storage and management area.
- max. 2 SC or LC duplex couplers
- wall mount screws included during delivery.
Specification
| Model | FTB86IR |
| Dimension(H×W×D) mm | 70*117*19MM |
| Max.capacity | 1SC+1 RJ11 |
| Humidity | 93%(+30°C) |
| Connect Models | Fusion splicing, Mechanical Splicing, FMC |
| Material | ABS+PC |
| Air Pressure | 70KPa~106KPa |
| Working temperature | -25~+60°C |
| Installation Models | Wall Mounted |
| Drop cable (Flat) | Indoor Flat Drop cable 2mm×3mm |
| Color | White |

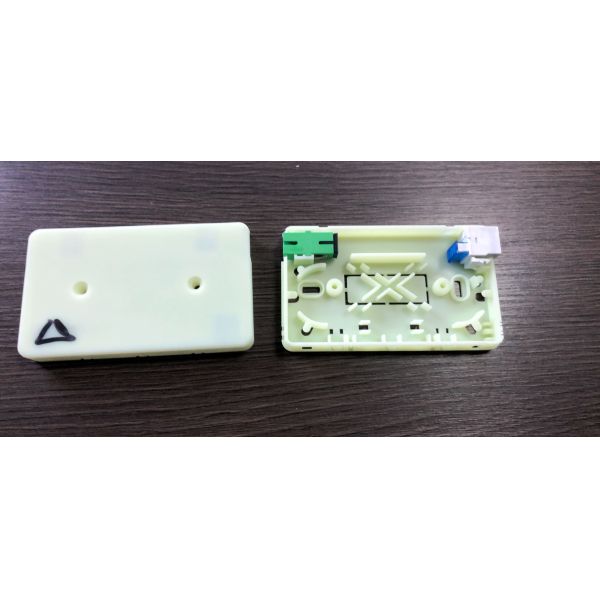

The box is very small size and thin height, but can mix optical and data function in a box, which meet fiber to copper network installation.
The adapter port can use SC simplex optical coupler, and data port is RJ11 module, white color, international standard, not special requirements or tools need.
The cover and bottom is connected by both sides clips, also can fix by 2screws on top of the lid. It is quite easy and fast to open and close.
there is square position for a logo print or sticker, better OEM choice.
Standards Compliance
- TIA/EIA 568.C, Optical Fiber Cabling Components Standard
- IEC61754, Fiber optic connector interfaces Standard
- ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
- GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
- RoHS (Directive on Restriction of Hazardous Substances. )
Wall-mounted installation
Drill 2 holes over the wall based on the suitable size, place the expansion boltΦ5.5*30, place the box; to match up the holes and use bolt to fasten.
